Sanitary Grade 304 Stainless Steel Filter Housing With Multicore CE Certification

Brand Name : UPK

Model Number : U019

Certification : SGS

Place of Origin : CHINA

MOQ : 1 Pc

Price : Negotiation

Payment Terms : L/C, T/T, Paypal

Supply Ability : 2000 Pcs per month

Delivery Time : 20-30 Days

Packaging Details : 1 PC Per wooden box

Item Name : Sanitary filter housing

Material : 304 316L

Cores : 3, 5, 7, 9, etc.

Inlet & Outlet : Flange, quick-coupler

Application : Sterilization filtration

Others : MTO

Contact Now

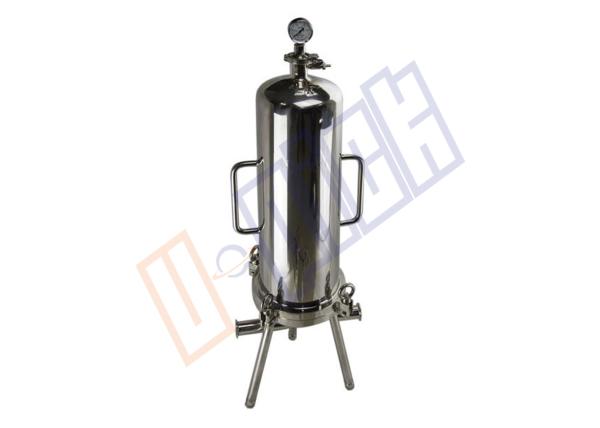

Multiple cores series sanitary grade liquid stainless steel filter housing

Specification

Table 1, Surface Treatment

Polishing Type	Physical / Electro / Grit Blast
Polishing Rating	I-0.3μm / O-0.4μm

Table 2, Operational Environment

Pressure	0.6Mpa (6bar)
Max Temp.	130℃ (266℉)
Sterilization	121℃/30Min.

Table 3, Material

Housing	304, 316L
Vent/Drain Valve	304, 316L
Tri-Clasp	304
Stand Bar	304
O-ring/Gasket	Silicone, Viton, EPDM, PTFE

Table 4, Connection

Cylinder	Flange
Inlet/outlet	Quick coupler
Vent	1/4” valve
Drain	1/4” valve
Gauge	1 1/2” Fast clasp

Application

TMFH series are wildly used in water treatment, food & beverage, chemical, pharmacy, etc. industries, in order to meet different industry need, it also can be degrade to industrial grade via grit blast surface treatment.

Feature & Benefits

Customized size
Various inner construction
Swinging arm for multiple cores
Grit blast for industrial grade
Acid-base & Pure water rinsing

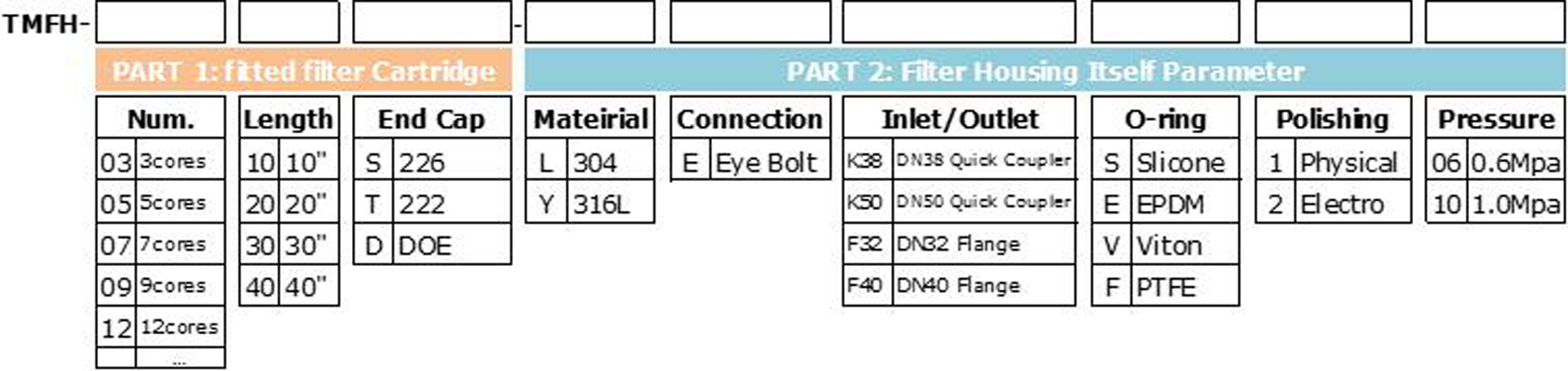

Ordering Information

Sanitary Grade 304 Stainless Steel Filter Housing With Multicore CE Certification
